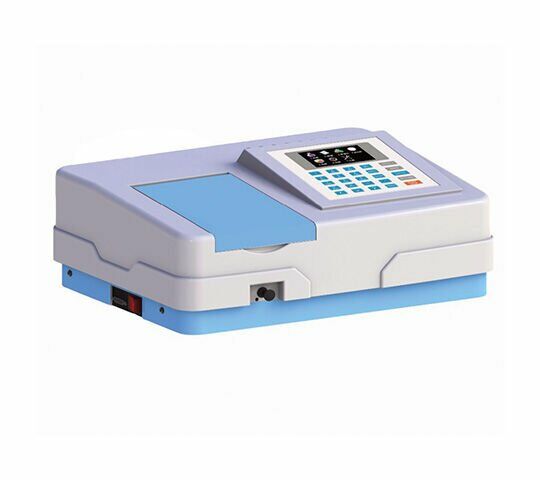

Biobase BK-UV1600PC Tek Işınlı UV-VIS Spektrofotometre
Sabit dalga boyuna göre Abs., Geçirgenlik ve Enerji Testi
Sıfır iki mod aracılığıyla Doğrusal uyum ve Doğrusal uyum
A. Katsayı, Standart Örnek girişi ve Standart Örnek, standart eğriyi oluşturmak için üç modu okur
B. A=K1*C+K0 oluşturun, orijinal verileri, grafik eğrisini, parametre ayarlarını arayabilir
C. 240 grup eğrisini kaydedebilir, her eğride 240 veriyi test edebilir
D. Çift dalga boyu, Üçlü dalga boyu test fonksiyonları
Teknik Özellikler
| Model | BK-UV1800 BK-UV1800PC / BK-UV1600 BK-UV1600PC / BK-V1800 BK-V1800PC / BK-V1600 BK-V1600PC |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 190~1100nm / 320-1100nm |
| Spectral Bandwidth | 2nm / 4nm / 2nm / 4nm |
| Wavelength Accuracy | ± 0.5nm |
| Wavelength Repeatability | ≤ 0.3nm |
| Photometric Accuracy | ± 0.002A (0~0.5Abs), ± 0.004A (0.5~1.0Abs), ± 0.5% T (0~100% T) |
| Photometric Repeatability | 0.001Abs (0~0.5Abs), 0.002Abs (0.5~1.0Abs), ≤ 0.2% T (0~100% T) |
| Stray Light | ≤ 0.05% T @ 360nm; 220nm / ≤ 0.05% T @ 360nm;220nm |
| Stability | ± 0.001A / h @ 500nm |
| Baseline Flatness | ± 0.002A |
| Noise | ± 0.0005A |
| Display | 480 * 272 65 thousand true color TFT LCD |
| Photometric Mode | T, A, C, E |
| Photometric Range | 0~200% T, -0.301~3.0A |
| Detector | Silicon Photodiode |
| Light Source | Deuterium Lamp, Tungsten Lamp |
| Input | Membrane Keypad |
| Output | USB Print and data output, Connect PC |
| Standard Accessories | 10mm glass cuvette *4 units 10mm quartz cuvette *2 units / 10mm glass uvette *4 units |
| Optional Accessories | Single cell holder,General cell holder,Test tube holder,Solid sample holder,Deuterium lamp,Halogen lamp,4-place Cell holder,Printer,Water-jacketed cell holder,Reflection accessory 5°,Auto 8-cell changer,Micro cell holder,Water-jacketed cell holder,Constant-temperature system / 4-place Cell holder,Printer, Test tube holder,Deuterium lamp,Halogen lamp |
| Power Supply | AC110V/220±10% ,60/50Hz |
| Packing Size(mm) | 620*500*370 / 620*500*370 / 620*500*370 / 620*500*370 |
| Gross Weight (kg) | 18 / 18 / 16.5 / 16.5 |
Sık Sorulan Sorular
UV bölgede ölçüm için ne gerekir?
190–340 nm aralığında ölçüm için döteryum lambalı UV-VIS model ve kuvars küvet gerekir.
Diğer marka ve modeller için Spektrofotometreler kategorimize göz atabilirsiniz.
Teslimat ve Destek
Ürün, üretici garantisiyle teslim edilir. Kurum, üniversite ve okul alımlarında teklif usulü çalışıyoruz; aksesuar, sarf ve servis talepleriniz için bize ulaşabilirsiniz: 0 530 817 45 67
| Dalga Boyu | : | Tek Işınlı |
